Mass-Centering Machines for Crankshafts 400 SBRZ, 600 SBRZ, 400 MBRZ

Modular design, change over for various crankshaft types through different carriages
Fully automatic operating sequence
Direct integration with production lines
Processing of unbalance data from the final balancing machine for optimization of the manufacturing process

Design

Mingle or multi-station machines with automatic sequence. Loading and unloading manually with a suitable lifting device, automatically by loading gantry or by integrated lift and carry transport.

Flexible machine design, especially suitable for varying crankshaft programs. Manual or automatic length

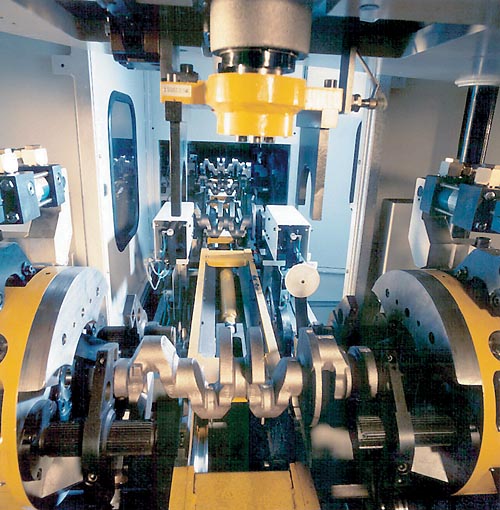

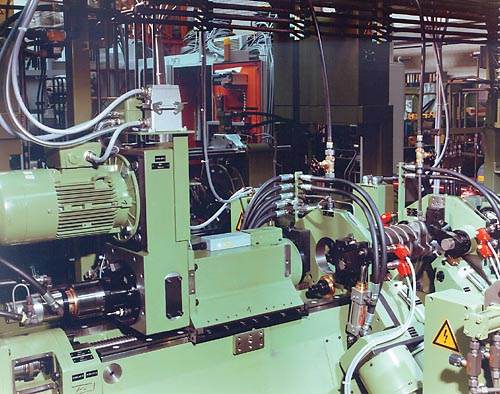

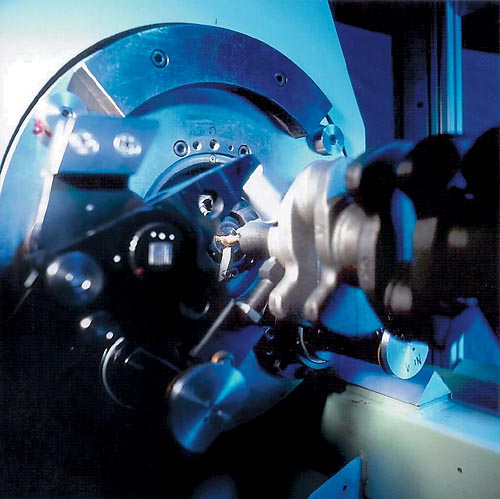

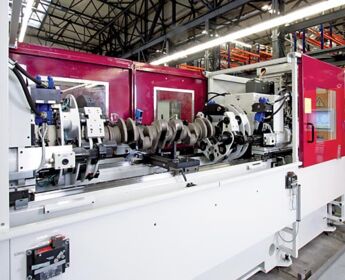

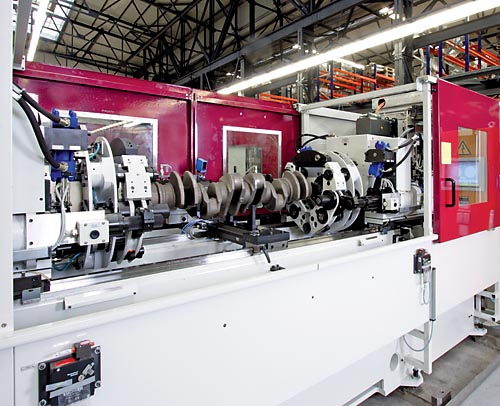

adjustment for change-over to various crankshaft lengths. Balancing frame supported on the machine base by round springs. Two carriage units mounted on the balancing frame with integrated externally rotating end discs mounted on precision bearings, each with two adjusting gears. Hydraulic spindle drill units or electro-mechanical carriage drill for center drilling, either integrated into the measuring station or arranged in a separate centering station.

Design

Technical data

Technical data at a glance			400 SBRZ	400 TBTZ	400 MBRZ	600 SBRZ
Measuring unit			CAB 950	CAB 950	CAB 950	CAB 950
Passenger car crankshafts			•	•	•
Crankshafts for light commercial
vehicles and trucks						•
Asymmetrical crankshafts			•	•	•	•
Varying type programs			•	•	•	•
Automatic sequence of operations			•	•	•	•
Lifting device						•
Combined measurement and centering			•			•
Separate measurement and centering				•
Measurement only					•
Crankshaft forging or casting
Weight		[kg]	7 - 50	7 - 50	7 - 50	40 - 200
Outside diameter, max.		[mm]	220	220	220	320
Main journal diameter		[mm]	45 - 80	45 - 80	45 - 80	70 - 130
Length		[mm]	360 - 780	360 - 790	360 - 790	500 - 1500
Machine

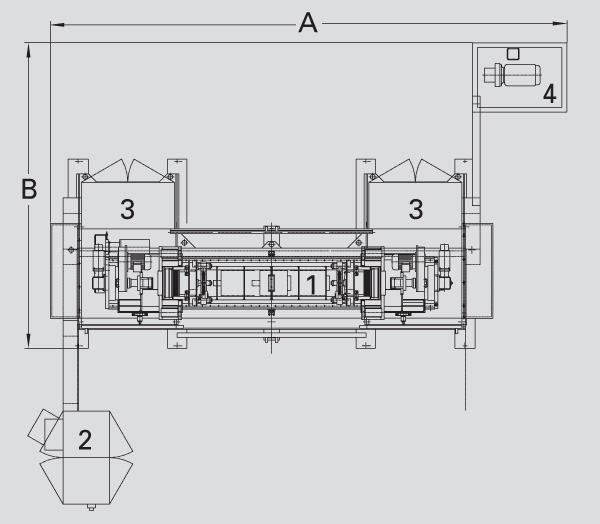

Width A ³⁾		[mm]	6700	3900	3900	7000
Depth B ³⁾		[mm]	3000	4000	4000	4000
Height C ³⁾		[mm]	2000	2000	2000	2600
Balancing speed		[min -1]	400	400	400	300
Clamping diameter		[mm]	45 - 120	45 - 120	45 - 120	60 - 180
Drill clamping diameter, max.		[mm]	25	25	-	25 / 32
Residual eccentricity ⁴⁾		[mm]	0,06 - 0,07	0,06 - 0.07	-	0,06 - 0,07
Displacement, max.		[mm]	±4	±4	-	±5
Cycle time ²⁾		[s]	45 - 80	25 - 32	23	50 - 80
Change-over time ¹⁾		[min]	1 - 30	1 - 50	1 - 30	1 - 45
Power consumption		[kVA]	17	20	12	19

Basic machine	Order No.	R0630100.01	R0630300.01	R0630400.01	R0630200.01
Options
Axial stop	Order No.	R0630101.01	R0630301.01	R0630401.01	R0630201.01
Swarf conveyor	Order No.	R0630104.01	R0630304.01	-	R0630204.01

1) Depending on crankshaft program and operator skill
2) Depending on weight, unbalance and drilling time (without loading and unloading)
3) Data non-binding, depending on equipment supplied
4) According to DIN 1319, 95% probability, relative to outer counter weights, mounting on center holes
